Excavator Track

Send Email Inquiry Now
Excavator track

EXCAVATOR TRACK

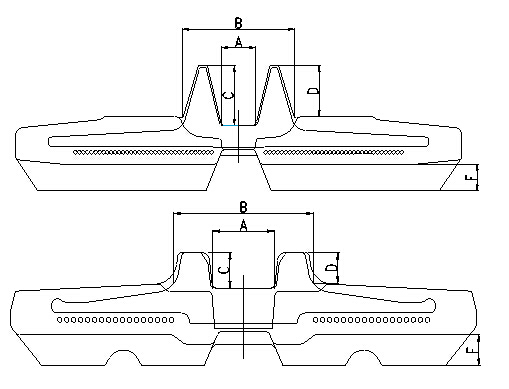

WIDTH*PITCH LINK A B C D F PATTERN GUIDING
130*72 29-40 23 64.5 28 28 15 AF1 A2
150*60 32-40 22 64 22.5 24.5 15 AC A2
150*72 29-40 23 64 23 23 15 AC A2
170*60 30-40 19 57 22 22 13 CE A1
180*60 30-40 23.5 64 21 21.5 15 AM A1
180*72 31-43 25 68 29 29 15 BK A2
180*72K 32-48 20 61 22 19.5 17 BB1 B2
180*72KM 30-46 23 64 29 31 15 A2
180*72YM 30-46 22.5 65 29 29 14 A2
B180*72 31-43 23 66 30 29 15 BB1 B2
H180*72 30-50 23 64 27 26 17 BK A2
T180*72 23 64 29 28.5 15 AC A2
V180*72K 30-50 20 61 22 19.5 17 BM A2
190*60 30-40 23.5 64 21 21.5 14 AM A1
190*72 31-41 21 68 27.5 26.5 15 BF A2
200*72 34-47 23 76 28.5 26.5 18 BB1 A2
200*72K 37-47 21 69 29.5 29 18 BM A2
Y200*72 40-52 24 64 28.5 29.5 12 BK A2
230*48 60-84 24 72 24 25 21 BI B1
230*48A 60-84 26 69 22 24 17 B1
230*48K 60-84 24 66 21 20 19 BI B2
230*72 42-56 24 82 30 26 18 AF1 A2
B230*72K 34-60 25 64 30 30 18 AB A2
230*72K 42-56 20 69 29.5 28 16 BD A2
V230*72K 42-56 20 69 29.5 28 16 BM A2
W230*72 24 76 29 25 15 A2
230*96 30-48 25 68 23.5 25.5 22 BE B1
230*101 30-36 25 74 22.5 29 19 BO B1
250*47K 84 23 70 24 20 22 BD B2
250*48.5K 80-88 24 66 21 20 19 CA B2
250*52.5 72-78 29 72 23 25 21 BI B1
250*52.5N 72-78 30 82 25 18 20 BI B1
250*52.5K 72-78 26 81 23 25 25 BA B2
250*72 47-57 24 82 30 26 18 AF1 A2
B250*72 34-60 23 64 29 22 10 CI A2
B250*72B 34-60 23 78 29 26 16 AB B2
250*96 35-38 25 70 20 19 22 BB1 B2
250*109 35-38 40 89 24.5 14 20 CG B1
260*52.5 74-80 40 88 23 22 23 BI B1
260*55.5K 74-80 31 80 21.5 27 24 CA B2
Y260*96 38-41 25 68 23 25.5 22 AB B1
V265*72 34-60 23 78 30 26 19.5 BM A2
260*109 35-39 30 84 24 29 15 AB B1
E280*52.5K 70-88 29 84 27 26 22 BI B2
280*72 45-64 25 78 29.5 26 22 AL A2
V280*72 25 75 29.5 26 22 A2
Y280*106K 35-42 30 80 27.5 28 20 AB B2
300*52.5N 72-98 30 82 25 18 20 BI B1
300*52.5W 72-92 43 96 22 23 22 BE B1
300*52.5K 70-88 29 84 27 26 22 BI B2
300*52.5KW 72-92 40 92 25 24 22 BI C1
E300*52.5K 70-88 29 84 27 26 22 BI B2
KB300*52.5 72-92 40 90 24.5 24.5 22 BI C1
KB300*52.5N 72-98 30 80 23 20 25 BI B1
JD300*52.5N 72-98 30 80 23.5 22 22 BI B1
300*53K 80-96 31 88 25 19.5 21 BI B2
300*55 70-88 29 86 25.5 27.5 23 BI B1
300*55YM 70-88 30 92 21 27.5 25 BI B2
300*55.5K 76-82 31 82 22 27 21.5 CA B2
300*71K 72-76 42 106 23 24 40 BD B2
300*72 36-40 23 75 40 34 18 BK A2
BA300*72 36-46 26 76 29 27 19 AF1 A2
300*109N 35-42 29 82 27 28 25 BE B1
300*109W 35-44 38 90 26 29 24 BB1 B1
K300*109 37-41 27 85 23.5 27.5 20 AB B2
300*109WK 35-42 40 90 24.5 14 23 CG B1
320*52.5 72-98 30 83 23.5 18 21 BI B1
320*54 70-84 29 80 23 21 20 AB B1
B320*55K 70-88 30 82 25 30 23 BE B2
Y320*106K 39-43 31 80 26 27 24 AB B2
350*52.5 70-92 40 94 22.5 19 30.5 BE B1
E350*52.5K 70-88 29 84 27 26 22 BI B2
350*54.5K 80-86 40 92 23.5 22.5 23 AD B2
B350*55K 70-88 30 82 25 30 23 BE B2
350*56 80-86 39 89 25.5 16.5 20.5 BC B1
350*72.5KM 62-76 40 93 23.5 25 19 BI B2
350*73 64-78 48 109 23.5 24 25 B2
350*75.5K 74 37 98 24.5 25 25 CA C2
350*108 40-46 40 90 24.5 14 25 CG B1
350*109 41-44 40 92 26 20 25 BO B1
Y370*107K 39-41 38 94 25.5 28 23.5 AB B2
400*72.5N 70-80 38 100 26 24 25 AF3 B1
400*72.5W 68-92 51 108 26 24 25 BI B1
Y400*72.5K 72-74 28 86 30 24.5 25 AF3 C2
KB400*72.5K 68-76 37 94 24 26 23.5 BA B2
400*72.5KW 68-92 46 112 24 23.5 25 BI B2
400*73 64-78 48 109 23.5 24 25 B2
400*74 68-76 38 100 25.5 29.5 24 BH2 B1
400*75.5K 74 39 100 25 26 25 CA C2
Y400*107K 46 38 89 27 25 25 AB C2
400*78 52 114 25 39 24 BD
K400*142 36-37 27 87 34 27 29 CF C2
400*144 36-41 47 98 27 11 30 CF B1
Y400*144K 36-41 35 126 29.5 26 25 BE B2
450*71 76-88 42.5 115 29.5 17 30 BE B1
DW450*71 76-88 44 114 31 27 25 BD B1
450*73.5 76-84 42 118 31 34 28 CG B1
450*76 80-84 48 122 30.5 31.5 26 BI B1
450*81N 72-80 42 117 26 24 27 BE B1
450*81W 72-78 58 140 29 32 30 BI B1
KB450*81.5 72-80 42 110 31.5 27.5 26 BD B1
K450*83.5 72-74 42 112 24.5 25 28 BI B1
Y450*83.5K 72-74 38 113 24 27 26 CA B2
K450*163 38 38 114 27 28 30 AB B2
485*92W 74 62 142 34 33 30 BE B2
K500*71 72-76 41 106 23 24 42 BE B2
500*92 72-84 48 130 27 26 29 BI B1
500*92W 78-84 64 155 32.5 35.5 33 BI B1
K500*146 35 40tt 106 26.5 24.5 50 BB1 A2
