Chain On
![Chain On](/wp-content/uploads/2021/04/3-1.jpg)

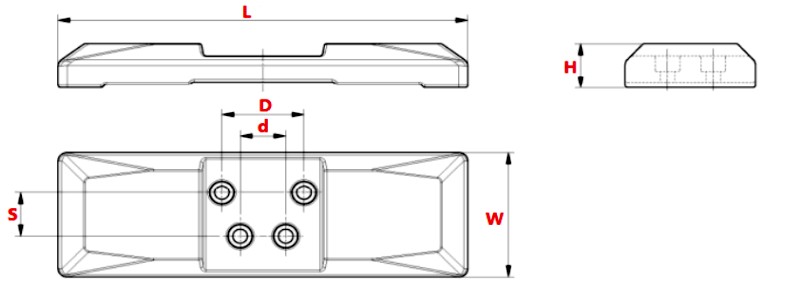

CHAIN ON | |||||||
MODEL | D | d | S | Bolt | L | W | H |
GQCT230 | 150 | M12 | 230 | 80 | 32 | ||
GQCT300 | 144 | 116 | 22 | M12 | 300 | 95 | 45 |
GQCT380 | 100 | 73 | 43.5 | M12 | 380 | 125 | 52 |
GQCT400 | 94 | 64 | 46 | M12 | 400 | 125 | 50 |
GQCT400A | 100 | 73 | 43.5 | M12 | 400 | 125 | 52 |
GQCT400B | 104 | 80 | 46 | M12 | 400 | 125 | 52 |
GQCT400C | 94 | 64 | 46 | M12 | 398 | 124 | 69 |
GQCT400D | 110 | 80 | 46 | M12 | 400 | 125 | 66 |
GQCT450 | 89 | 73 | 57 | M14 | 450 | 145 | 50 |
GQCT450A | 90 | 90 | 55 | M14 | 450 | 145 | 54 |
GQCT450B | 99 | 72 | 43.6 | M12 | 450 | 130 | 54 |
GQCT450C | 76 | 106 | 46 | M12 | 450 | 145 | 54 |
GQCT450D | 90 | 90 | 46.3 | M14 | 450 | 145 | 51 |
GQCT450E | 73 | 73 | 57 | M14 | 450 | 146 | 56 |
GQCT450F | 89 | 73 | 57 | M14 | 450 | 145 | 77 |
GQCT450FN | 89 | 73 | 57 | M14 | 450 | 130 | 74 |
GQCT450G | 83 | 83 | 52 | M12 | 450 | 130 | 54 |
GQCT450H | 86 | 86 | 52 | M12 | 450 | 145 | 54 |
GQCT450J | 90 | 90 | 55 | M14 | 450 | 130 | 74 |
GQCT500 | 102 | 86 | 57 | M16 | 500 | 165 | 63 |
GQCT500A | 108 | 108 | 60.5 | M16 | 500 | 165 | 69 |
GQCT500AN | 108 | 108 | 60.5 | M16 | 500 | 156 | 86 |
GQCT500B | 102 | 86 | 57 | M16 | 500 | 164 | 100 |
GQCT500C | 160 | 124 | 62 | M16 | 500 | 165 | 69 |
GQCT600A | 160 | 124 | 62 | M20 | 600 | 178 | 72 |
GQCT600C | 108 | 108 | 60 | M16 | 600 | 162 | 60 |
GQCT600D | 156 | 119 | 69 | M20 | 600 | 178 | 72 |
GQCT600E | 90 | 75 | 55 | M20 | 600 | 145 | 50 |
GQCT600F | 89 | 73 | 57 | M14 | 600 | 144 | 95 |
